DIY case annealing machine

Posted: Tue Jan 19, 2016 10:12 am
by Duker
After reading about the "Skip design" home made annealing machine on various sites I decided to have a go at building one. And then another for a shooting buddy. All together I've got around $150 in the pair. Anyone looking to improve their annealing consistency I strongly recommend putting one together.




Re: DIY case annealing machine

Posted: Tue Jan 19, 2016 12:29 pm
by Ramos
Very nicely done there, Duker! I have been collecting parts to build one myself. I have also been shamelessly stealing ideas from various home-built units for the last year or so. Any chance of a picture of the backside of these two units? I want to use one motor and speed controller to turn both, the feeder drum and pan. I have some very small (1/4" pitch) roller chain to connect the two. Again, thanks for sharing and, great job!!!

Re: DIY case annealing machine

Posted: Tue Jan 19, 2016 12:38 pm
by D.Davis
Clean operation, very neat, I like it. Plans? Dave

Re: DIY case annealing machine

Posted: Wed Jan 20, 2016 1:28 am
by CRT
Nice work, I like it!

Re: DIY case annealing machine

Posted: Wed Jan 20, 2016 8:45 am
by L.Sherm
Nice, may have to give this a try sometime :)

Re: DIY case annealing machine

Posted: Wed Jan 20, 2016 10:02 am
by Duker
D.Davis wrote:Clean operation, very neat, I like it. Plans? Dave


I doubt there are two Skip design machines exactly alike but with that said, here's a link to a lengthy thread with plans and some worth while discussion.
http://www.ar15.com/forums/t_6_42/43408 ... chine.html
And another set of plans
https://docs.google.com/document/d/1bb_ ... a0eX0/edit

Re: DIY case annealing machine

Posted: Wed Jan 20, 2016 12:25 pm
by Ramos
Thanks for the additional info, Duker.

Re: DIY case annealing machine

Posted: Thu Jan 21, 2016 11:58 am
by Duker
Ramos wrote: Any chance of a picture of the backside of these two units?

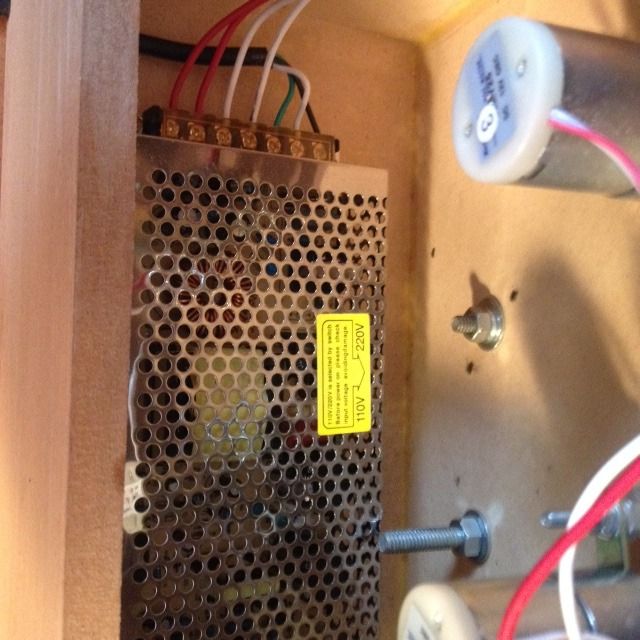

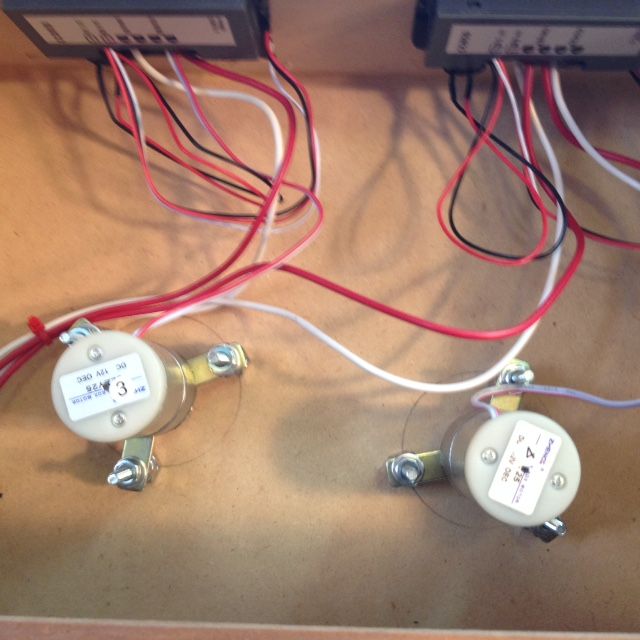

Here is the back side of the two roller machine. I gave the single roller unit to a buddy prior to taking a back side picture of it.



Re: DIY case annealing machine

Posted: Thu Jan 21, 2016 12:30 pm
by Ramos
Perfect! The two motor unit is the one I most wanted to see. I really need to get going on the project. I have done a couple thousand cases this Winter using a torch/cordless drill/deep socket. Works just fine but, has no entertainment value whatsoever!!! :mrgreen:
